RAEL Electromotor was established in 1969 in Genoa, Italy as an electric motor repair and winding company and gradually grew with the development of its activities and became a reputable name in the field of electric motors production and especially explosion proof electric motors. ) was established.
List of hidden content
Introduction of RAEL electromotor company
Since 1986, RAEL Electric Motor Co. has grown significantly and moved its office buildings and factory to the city of Perdoza.
The total area of Rael company is about 10,000 square meters, of which 4,537 square meters are covered and divided into sections including 3,337 square meters for the production department, 371 square meters for administrative offices and 829 square meters for warehouse.
With continuous research on products that have a high quality standard and competitiveness, RAEL Electromotor Company has automated its production system and equipped itself with equipment such as the latest generation of CNC lathes and machining machines, industrial robots, CNC milling and grinding machines, inspection rooms with CMM measuring devices. , and uses computer control system and automatic assembly lines to produce its products.
This company offers a lot of flexibility in fulfilling the customer’s needs, including custom electric motors.
Since 2003, RAEL Electromotor Company has obtained the ISO 9001:2000 certificate and the ATEX standard .
This company was also able to receive the Gost-R certificate, which is related to product quality and conformity in the Russian Federation.
With the above features, Rael has been able to rank among the best and most well-known manufacturers of explosion-proof electric motors . Explosion-proof electric motors are used in various industries, especially chemical , oil and gas, and petrochemical industries .
Contact numbers: 02166278904 – 02166268920
Different series of RAEL electric motor
The products of RAEL Electromotor Company are divided into three main product series:
ADPE series
This series of Rael anti-spark electric motors are specially designed and optimized for use in fuel pumps in industrial and construction applications. This series is available in V80 and V80V2 models (with a shaft length of 80 mm) and V90 and V90A models (with a shaft length of 90 mm).
APDE series RAEL electric motor catalog
RL series

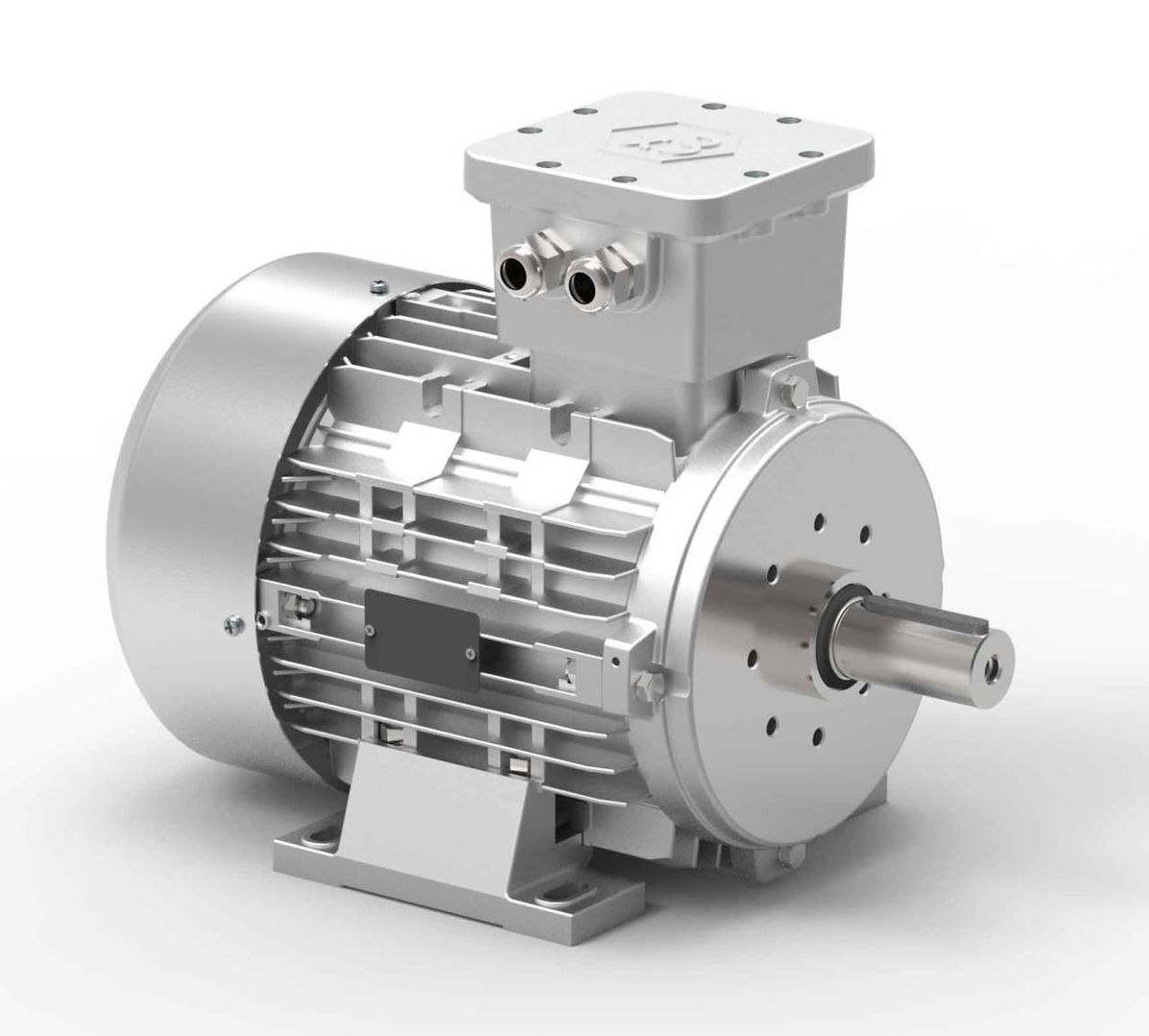

This series of explosion-proof electric motors is produced for use in surface equipment that works in environments contaminated with gas, vapors and flammable particles. Among the features of this series of IEC standard sizes, the body is made of aluminum alloy and the possibility of moving the terminal box up and next to the motor. These electric motors are manufactured and supplied in sizes 56 to 160 (three-phase) and 56 to 100 (single-phase) and comply with European protection standards including Ex d IIC, Ex d IIB and Ex de IIC.
RAEL RL series electric motor catalog
MIA series
This series of Rael electric motors is suitable for use in spaces that are potentially flammable and explosive due to the presence of gases, vapors and particles.
The main features of the MIA series are:
- Three-phase asynchronous motors with squirrel cage rotor and frame size 56 to 160
- Completely closed with protection degree up to IP66 and insulation class F
- With rounds of 750, 1000, 1500 and 3000
- Voltage 800 volts and frequency 50/60 Hz
- Two-speed motors with Dalander connection or separate winding
- Temperature class T4, T5 and T6
